Description

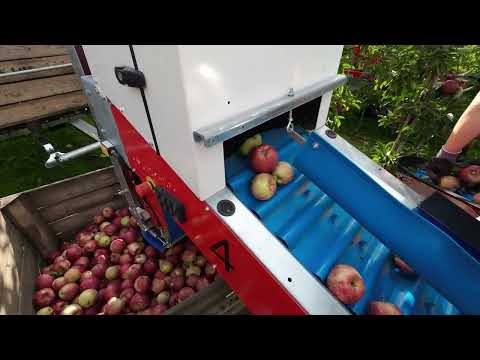

The Pluk-O-Trak Junior is a compact harvesting aid, designed for driving distances from 8.3 to 15 feet (2.50 to 4.50 meters) and tree heights up to 13 feet (4 meters). The agile Pluk-O-Trak Junior harvesting plant has been developed just like the Senior to function in hilly, sandy and rocky conditions. This harvester meets the highest quality requirements. 4 to 6 harvest workers can start simultaneously, from the ground and on two platforms. The fruit is placed on 4 conveyor belts (optional: 6 conveyor belts). When coupling a box carrier, up to 16 boxes can be taken along. The box carrier has swivel wheels and lifts the crates manually or via an electrically operated pump.
Technical specifications
Motor | Honda 1 cyl. petrol 9,7 kW (13 HP) |
Versnellingsbak | Stepless forwards and backwards |
Transmissie | Hydrostatic |
Snelheid | 0 - 4 km/h |
Bandenmaat | 23 × 10,50 – 12, 4 ply tubeless |
Inhoud Brandstoftank | 10 ltr |
Weight | 840 KG |
Lengte | 3,30 m |
Breedte | 2,00 > 2,70 m |
Hoogte | 2,10 > 2,80 m |
Pluk banden | 4 picking belts (50 ~ 200 cm) |
Pluk plateaus | 2 manual platforms, 75 x 40 cm |
Hydraulische verstelling | 0,75 > 1,60 m (Optional) |
